HIKVISION

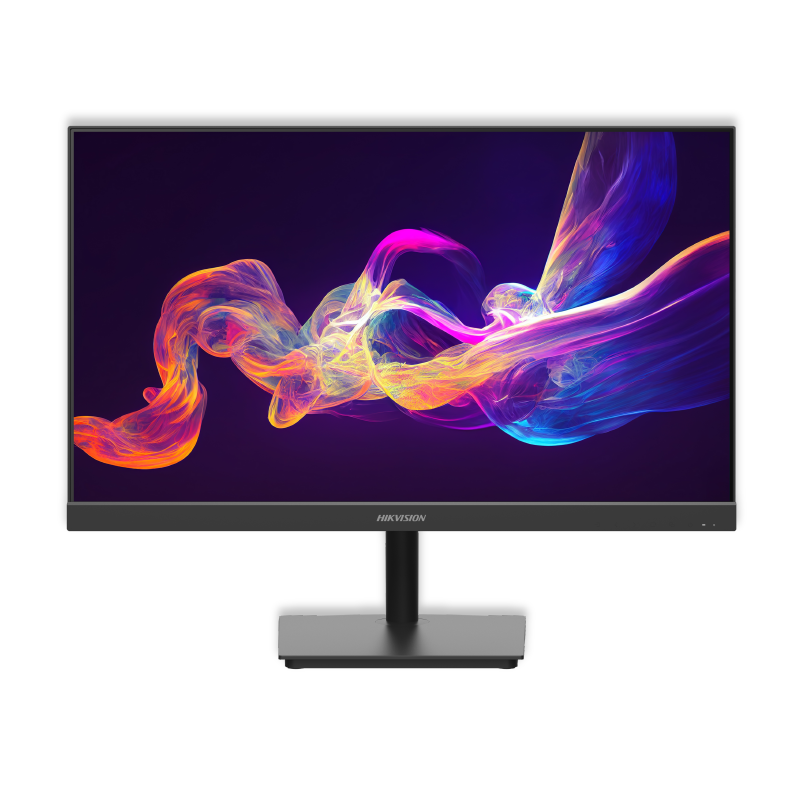

DS-D5024F2-AV2 24"
23.8 inch FHD 100Hz VA Monitor
The Hikvision DS-D5024F2-AV2 is a reliable 24-inch CCTV Monitor built for continuous security monitoring. It displays your surveillance feeds in clear Full HD 1080p resolution. Therefore, you can spot critical details like faces or license plates on your security cameras easily. Next, it features a sleek desktop form factor with ultra-thin bezels. This compact design allows you to set up multi-monitor displays neatly. As a result, it fits perfectly on office desks or retail counters. Additionally, it includes multiple input ports like HDMI and VGA. Finally, built-in blue light filters protect your eyes during long security shifts instantly.
1 YEAR
WARRANTY
Installation
Available
Key Features:
- 24-Inch Full HD Screen: Clear 1920 × 1080 video layout that displays security feeds perfectly.
- Ultra-Thin Bezel Design: Modern borderless style that maximizes your viewing area across multi-screen setups.
- HDMI & VGA Inputs: Standard connectivity ports that match almost all NVR and DVR recorder boxes.
- VESA Wall Mountable: Flexible backplate template allows simple wall mounting or desktop stand placement.
- Fast Response Time: Displays smooth live action footage without leaving ghosting effects or screen lag.
- Eye Protection Technology: Uses low blue light filters to minimize eye strain during night shifts.
Display
| Screen Size | 23.8 inch |
| Active Display Area | 527.04 (H) mm × 296.46 (V) mm |
| Resolution | 1920 × 1080 |
| Backlight | E-LED |
| Pixel Pitch | 0.2745 (H) mm × 0.2745 (V) mm |
| Brightness | 250 cd/m² |
| Viewing Angle | 178° (H) / 178° (V) |
| Color Depth | 8 bit ,16.7 M |
| Contrast Ratio | 4000 : 1 |
| Response Time | 7ms |
| Refresh Rate | Typ. 60 Hz , Max. 100Hz |
| Haze | Haze 25% |
| Reliability | 7 × 16 H |
| Color Gamut | 72% NTSC |
Interface
| Video & Audio Input | HDMI 1.4 × 1, VGA × 1 |
| Video & Audio Output | Audio Out × 1 |
| Data Transmission Interface | None |
| Control Interface | None |
Power
| Power Supply | DC 12V, 2.0A |
| Power Consumption | ≤ 24 W |
| Standby Consumption | ≤ 0.5 W |
Environment
| Working Temperature | 0℃ to 40 ℃ (32 ℉ to 104 ℉) |
| Working Humidity | 20% to 90% RH (Non-Condensing) |
| Storage Temperature | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉) |
| Storage Humidity | 10% to 90% RH (Non-Condensing) |
General
| Casing Material | Plastic |
| VESA | 75 mm × 75 mm (4 – M4 × 6 mm) |
| Bezel Width | 2.0 mm (top/left/right), 23.55 mm (bottom) |

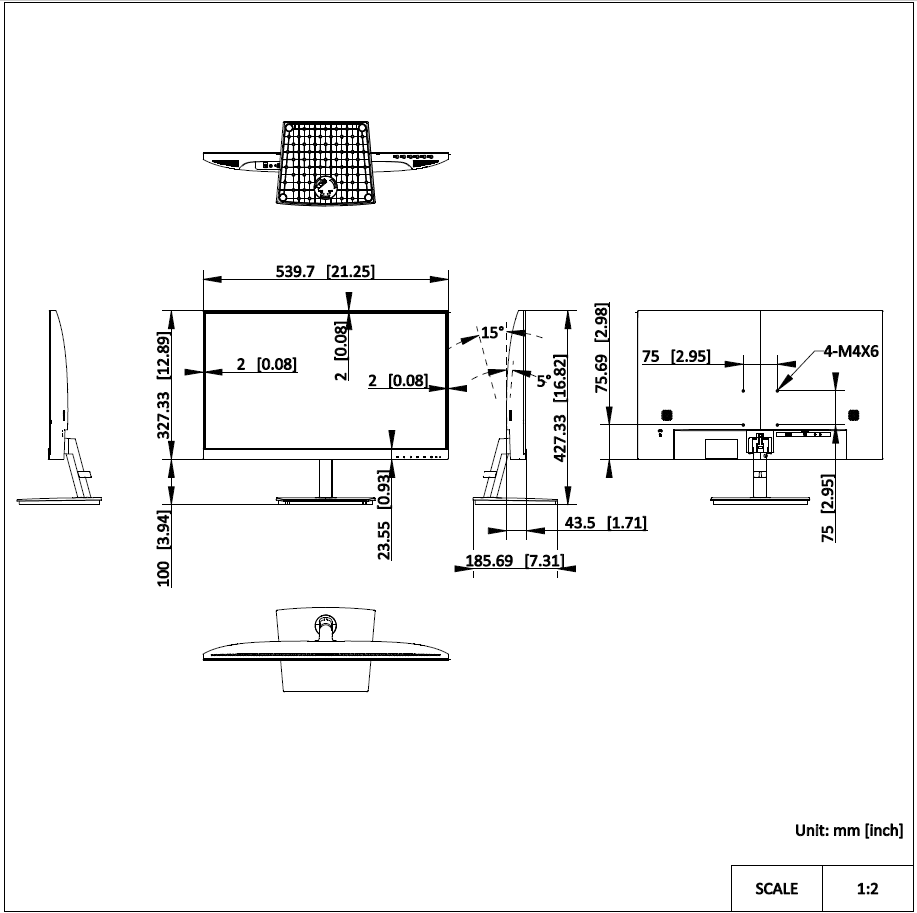

| Product Dimensions (W × H × D) | With base: 539.7 (W) mm × 427.33 (H) mm × 185.69(D) mm 21.25 (W) inch × 16.82 (H) inch × 7.31 (D) inch Without base: 539.7 (W) mm × 327.33 (H) mm × 43.5 (D) mm 21.25 (W) inch × 12.89 (H) inch × 1.71 (D) inch |
| Package Dimensions (W × H × D) | 611 (W) mm × 405 (H) mm × 118 (D) mm (24.06(W) × 15.94(H) × 4.65 (D) ) inch |
| Net Weight | 2.85 ± 0.5 kg |
| Gross Weight | 3.85± 0.5 kg |
| Packing List | Monitor × 1, Base component × 1, Power adapter (12 V, 2 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1 |
