16CH 1.5U 8K NVR

HIKVISION

DS-7716NI-M4

16 CH 1.5U 8K NVR

The Hikvision DS-7716NI-M4 is a commercial-grade 16CH 8K Network Video Recorder (NVR) engineered for high-end security networks. It connects and records up to sixteen IP surveillance cameras simultaneously with incredible speed. First, this powerhouse recorder supports a massive 8K video resolution output. Therefore, it is highly advised for managing high-clarity 4MP and 8MP IP cameras cleanly. Next, it features a heavy-duty 1.5U rackmount form factor equipped with 4 SATA HDD slots. These storage bays allow you to install large hard drives up to 16TB per slot for extensive video recording archives. Additionally, dual HDMI and VGA video outputs make multi-screen monitoring smooth. Finally, it includes a reliable one-year device warranty alongside three months of coverage for its power adapter.

Warranty 1 YEAR WARRANTY
Installation Installation Available
The Hikvision DS-7716NI-M4 network video recorder brings enterprise-level data throughput and maximum storage capacity to your business security infrastructure. It processes high-resolution video streams from sixteen separate IP cameras fluidly. Consequently, you can review archived security events or watch real-time feeds with zero frame stutter or video delay. It features a standardized dual-output layout. Therefore, you can connect the separate HDMI and VGA lines to distinct monitors to run independent workstation layouts simultaneously. This professional 16-channel NVR stands out because of its extreme performance and vast hard drive expandability. With four independent SATA connection tracks inside, you can build a massive storage pool to retain continuous ultra-high-definition recordings for months. Furthermore, it easily decodes modern H.265+ smart video streams. This compression technology cuts down your network bandwidth load and saves hard drive memory space efficiently. Lastly, the unit features an industrial 1.5U metal chassis layout. This tough build houses dedicated cooling paths to ensure that your internal components run safely 24 hours a day.

Key Features:

  • 16-Channel 8K Recording: High-capacity system that captures ultra-high-definition video across multiple channels simultaneously.
  • 4MP & 8MP Camera Optimization: Specially advised to extract maximum clarity from professional high-resolution IP cameras.
  • Massive 4-SATA Storage Bays: Features four independent hard drive slots that support up to 16TB disk capacities each.
  • Dual HDMI & VGA Outputs: Supports separate main and sub-screen monitoring layouts for comprehensive control rooms.
  • Smart H.265+ Optimization: Drastically minimizes network traffic congestion and optimizes hard drive space usage.
  • Dual-Tiered Warranty System: Includes a 1-year product warranty for the main NVR chassis and 3 months for the power adapter hardware.

Video & Audio

IP Video Input 16-ch Up to 32 MP resolution *: The NVR supports up to 8-ch 32/24/16 MP IP video inputs.
Incoming Bandwidth 256 Mbps
Outgoing Bandwidth 256 Mbps
HDMI 1 Output 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA Output 1920 × 1080/60Hz
Video Output Mode HDMI1/VGA simultaneous output, HDMI2/VGA independent output
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

Decoding Format H.265+/H.265/H.264+/H.264
Recording Resolution 32 MP/24 MP/16MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF *: The NVR supports up to 8-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP.
Synchronous Playback 16-ch
Decoding Capability 2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 6-ch@12MP (30 fps);10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps);16-ch@5 MP (30 fps);
Dual-Stream Recording Support
Stream Type Video, Video & Audio
Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network

Remote Connection 128
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
Network Interface 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Camera Access Protocol ONVIF(Version 2.5), RTSP

Auxiliary Interface

eSATA 1 eSATA interface
SATA 4 SATA interfaces
Capacity Up to 16 TB capacity for each disk
Serial Interface 2 RS-485 (half-duplex), 1 RS-232
Alarm In/Out 16/9
USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Ctrl 12V Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
DC 12V 12 VDC, 1 A power output

General

Power Supply 100 to 240 VAC, 50 to 60 Hz
Consumption ≤ 15 W (without HDD )
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Chassis 19-inch rack-mounted 1.5U chassis
Dimension (W × D × H) 445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")
≤ 5 kg (without HDD, 11 lb.)

Catalogue

Product catalogue containing product information and specifications.

Download

User Manual

User manual containing product usage and operating instructions.

Download

Guide Installation

Product installation guide.

Download

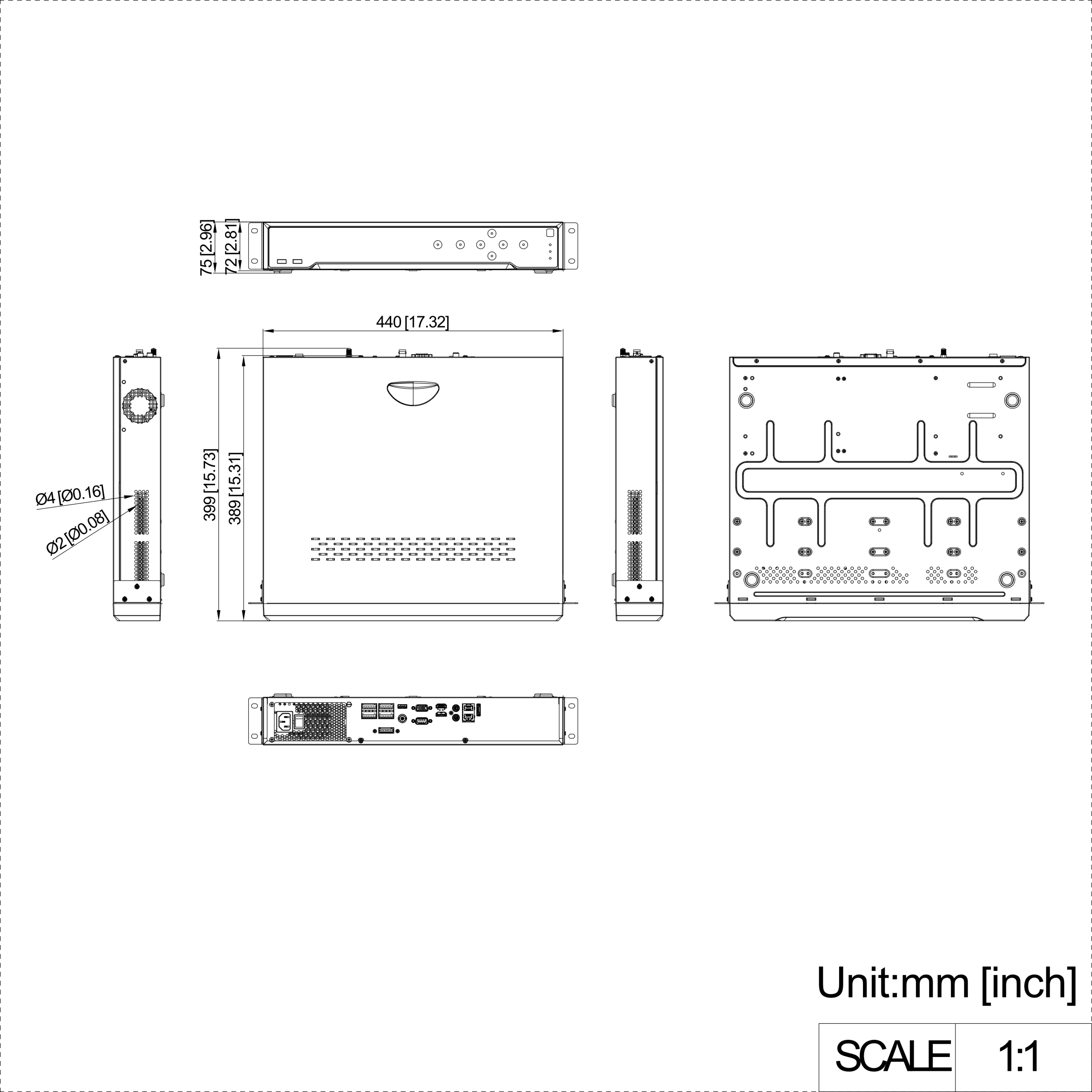

Dimensions

Product dimensions and measurements.

Download
