HIKVISION

DS-2CE70D0T-PTLTS

2 MP Two Way Audio Fixed PT Camera

The Hikvision DS-2CE70D0T-PTLTS is a smart 2MP Smart Hybrid Light Two-Way Audio Fixed PT Camera. It helps you secure indoor rooms, offices, or shop counters easily. First, the camera records in clear Full HD 1080p resolution with a 2.8mm lens. Therefore, you can capture a very wide view of your property. Next, it features a flexible pan-tilt (PT) form factor. This allows you to rotate the lens to eliminate blind spots. As a result, you can view the entire room easily. Additionally, it has 20-meter smart hybrid night vision to protect you in total darkness. Finally, the built-in microphone and speaker give you clear two-way audio to talk with people instantly.

View User Manuals

Available models:

DS-2CE70D0T-PTLTS (2.8 MM)

DS-2CE70D0T-PTLTS (3.6 MM)

1 YEAR WARRANTY

Installation Available

The Hikvision DS-2CE70D0T-PTLTS analog security camera brings flexible movement and clear audio to your surveillance system. It records video in a sharp 2 Megapixel resolution. Consequently, you can track family, staff, or customers with great clarity. It connects directly over standard coaxial cabling. Therefore, it makes an easy upgrade for traditional DVR security setups that need pan-tilt control. This compact indoor camera stands out because of its advanced hybrid lighting system. You can choose between standard black-and-white infrared mode, full-time color mode, or smart event-driven lighting. When the lens detects motion, the camera activates its bright white light. This function allows the camera to capture everything in clear, full color up to 20 meters away. Furthermore, it features a built-in microphone and speaker. This setup collects surrounding sound and lets you speak back through the camera. Lastly, the camera uses a reliable ceiling-mount design. This tough casing handles daily indoor use and dust with ease.

Key Features:

2MP Full HD Video: Clear 1080p video resolution that captures crisp indoor details.
Pan & Tilt Control: Rotates the camera lens easily to cover wide spaces and remove blind spots.
Smart Hybrid Light: Changes from black-and-white night vision to bright full-color video when movement occurs.
Two-Way Audio: Integrated microphone and speaker let you listen and talk back over the cable system.
Wide 2.8mm Lens: Offers an expansive viewing angle ideal for large rooms and offices.
Easy Analog Setup: Transmits video, audio, and control signals over standard coaxial wires.

Camera

Image Sensor	2 MP CMOS
Max. Resolution	1920 (H) × 1080 (V)
Min. Illumination	0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/12.5 s to 1/50,000 s,NTSC: 1/15 s to 1/50,000 s
Day & Night	ICR
Angle Adjustment	Pan: 0° to 350°,Tilt: 0° to 100°
Signal System	PAL/NTSC

Lens

Lens Type	2.8 mm, 3.6 mm fixed lens
Focal Length & FOV	2.8 mm, horizontal FOV: 105°, vertical FOV: 59°, diagonal FOV: 127°; 3.6 mm, horizontal FOV: 87°, vertical FOV: 46°, diagonal FOV: 105°
Lens Mount	M12


Image Settings	Anti-banding, Brightness, Sharpness, Smart IR
Frame Rate	TVI: 1080p @25 fps/30 fps
Day/Night Mode	Auto/Color
Wide Dynamic Range (WDR)	Digital WDR
Image Enhancement	DWDR, BLC, HLC, Global, HLS
Noise Reduction	2D DNR
White Balance	Auto, Manual

General

Power	12 VDC ± 25%, max. 8.7 W, *You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.
Material	Plastic

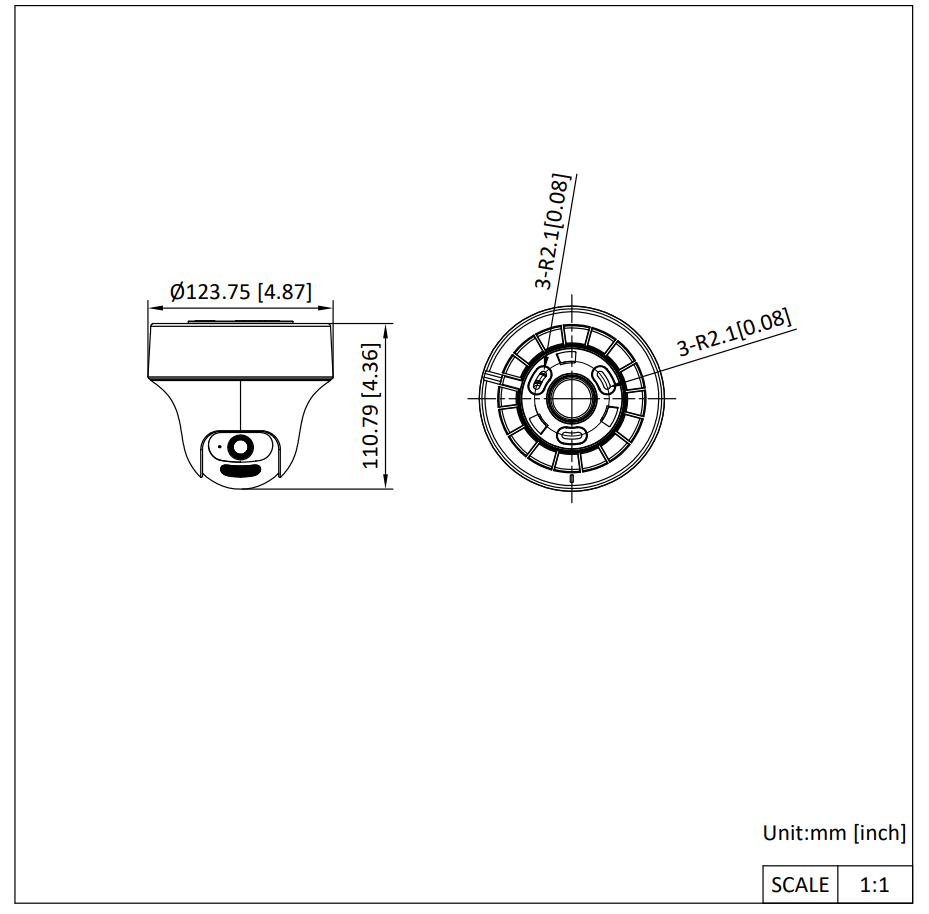

Dimension	Ø123.7 mm × 110.8 mm (4.87" × 4.36") Approx. 340 g (0.75 lb.)
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
Communication	HIKVISION-C
Language	English
