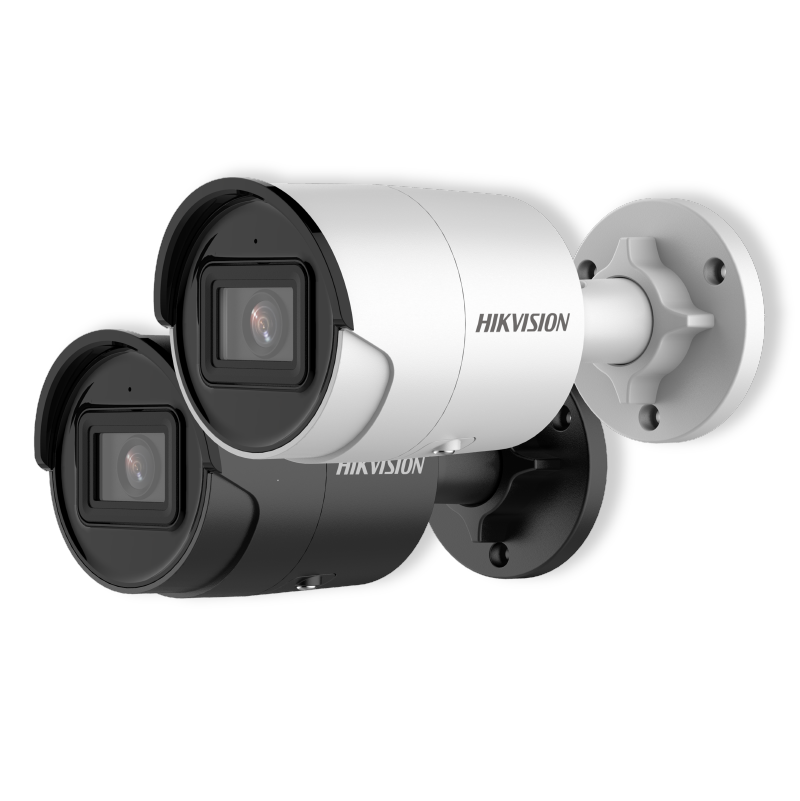

4 MP AcuSense Fixed Bullet Network Camera

HIKVISION

DS-2CD2043G2-I

4 MP AcuSense Fixed Bullet Network Camera

DS-2CD2043G2-I

*Product images are shown for illustration purposes only. Actual product appearance and specifications may differ.

HIKVISION

DS-2CD2043G2-I

4 MP AcuSense Fixed Bullet Network Camera

The HIK DS-2CD2043G2-I is a high-performance 4MP IR AcuSense Fixed Bullet Camera built for smart, round-the-clock security. It captures sharp 2K video resolution, delivering twice the detail of standard 1080p cameras for easier identification of faces and objects. Equipped with advanced AcuSense AI technology, this camera accurately classifies human and vehicle targets, reducing annoying false alarms caused by rain or blowing leaves. Featuring a precise 4mm lens and powerful infrared LEDs, it provides clear black-and-white night vision up to 30 meters in complete darkness. Its weather-resistant bullet form factor makes it an excellent choice for dependable outdoor surveillance.

View User Manuals
Available models:
DS-2CD2043G2-I (4 MM)
Warranty 1 YEAR WARRANTY
Installation Installation Available
The Hikvision DS-2CD2043G2-I IP camera brings intelligent, commercial-grade security to your home or business premises. With its clear 4 Megapixel sensor, it records high-quality video that ensures critical visual evidence is always crisp and highly detailed. It is perfect for monitoring driveways, outdoor perimeters, walkways, and storefronts. This camera stands out due to its built-in AcuSense deep learning algorithm. Instead of alerting you every time a dog runs past or the wind moves a tree branch, the camera focuses strictly on real security events involving humans or vehicles. In low-light environments, the integrated smart infrared night vision automatically adjusts to prevent overexposure, ensuring clean black-and-white images up to 30 meters away. Installation is simple and clean thanks to Power over Ethernet (PoE) support, which allows you to run data and electrical power through just one single network cable. Encased in a rugged, waterproof shell, this camera handles heavy rain, dust, and harsh outdoor weather with ease.

Key Features:

  • 4MP 2K Video: Sharp video resolution that provides much cleaner details than standard CCTV setups.
  • AcuSense AI Analytics: Deep learning smart technology that filters out false alarms by focusing only on people and cars.
  • Smart IR Night Vision: Keeps your property safe in the dark with clear black-and-white imaging up to 30 meters.
  • Fixed 4mm Lens: Offers a well-balanced viewing distance and angle ideal for perimeter monitoring.
  • Clear Shadow Details: Uses 120dB True WDR to balance bright areas and dark shadows for a complete picture.
  • Efficient Storage Saving: Uses advanced compression to save plenty of space on your hard drive without lowering quality.
  • Outdoor Weatherproof Body: Strong waterproof design engineered to reliably withstand harsh outdoor conditions.

Camera

Image Sensor 1/3″ Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Focal Length & FOV 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100° 6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 61°
Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
Lens Mount M12
Aperture F1.6
Iris Type Fixed

Video

Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream

Audio

Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/16-64 Kbps(AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes

Network

Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+


Image Parameters Switch Yes
Image Settings Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
Image Enhancement BLC, HLC, 3D DNR
SNR ≥ 52 dB

Interface

Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD card, up to 512 GB
Built-in Microphone Yes
Reset Key Yes

General

Power 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.13 A, max. 7 W
Dimension Ø70 × 161.7 mm (Ø2.76″ × 6.37″)
Package Dimension 216 mm × 121 mm × 118 mm (8.6" × 4.8" × 4.7")
Weight Approx. 490 g (1.1 lb.)
With Package Weight Approx. 724 g (1.6 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Language 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Catalogue

Product catalogue containing product information and specifications.

Download

User Manual

User manual containing product usage and operating instructions.

Download

Dimensions

Product dimensions and measurements.

Download
