*Product images are shown for illustration purposes only. Actual product appearance and specifications may differ.
HIKVISION

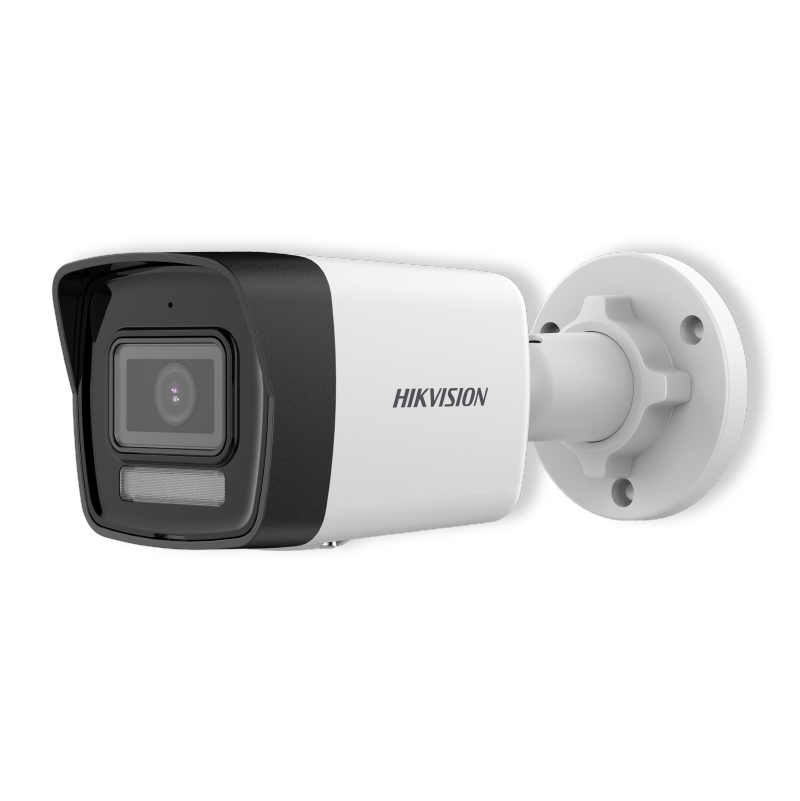

DS-2CD1043G2-LIU
4 MP Dual Light Human Detection Fixed Bullet Network Camera
The Hikvision DS-2CD1043G2-LIU is a 4MP Smart Hybrid Light Fixed Bullet Network Camera made for clear day and night security. It records in high-quality 2K video, which is twice as sharp as normal 1080p. The camera uses Smart Hybrid Light technology. This means it stays on invisible infrared night vision in the dark, but turns on a bright white light to record in full color when it spots a person or a car. With smart Human and Vehicle Detection, it stops false alarms from wind or animals. It features a 2.8mm or 4mm lens, a built-in microphone for sound, and a waterproof bullet form factor built to work outside in heavy rain.
Available models:
DS-2CD1043G2-LIU (2.8 MM)
DS-2CD1043G2-LIU (4 MM)
1 YEAR
WARRANTY
Installation
Available
The Hikvision DS-2CD1043G2-LIU IP camera gives your home or business better security with clear 4 Megapixel video. This camera captures sharp details like faces and license plates easily. It is perfect for outdoor areas like driveways, gardens, and shop fronts. This camera uses a smart dual-light system. At night, it uses invisible IR lights so it does not attract attention. But if the camera sees a person or a car, it instantly turns on its bright white LEDs. This scares away intruders and lets the camera record everything in bright, full color. It also has a built-in microphone to record clear audio along with your video. Setting it up is easy because it uses PoE (Power over Ethernet), meaning one single network cable handles both power and internet. The camera has a strong IP67 waterproof shell, so it works perfectly outside during heavy rain or hot weather.
Key Features:
- 4MP 2K Quad HD Video: Captures high-clarity 2560 × 1440 resolution surveillance footage at 20fps.
- Smart Hybrid Dual Light: Seamlessly shifts between discrete IR and vivid White Light up to a 30m range.
- AI Human & Vehicle Detection: Employs Motion Detection 2.0 to filter out up to 90% of non-threatening false alarms.
- Built-In Security Audio: Features an integrated high-sensitivity microphone for real-time sound tracking.
- 120dB True WDR: Delivers perfectly balanced exposure in challenging backlit entries or deep outdoor shadows.
- Efficient H.265+ Compression: Reduces storage consumption and network bandwidth by up to 75%.
- IP67 Outdoor Protection: Heavy-duty dust and water resistance built to survive extreme climates.
Camera
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
Lens
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114° 4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
Video
| Main Stream | 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR,VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
Audio
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
Network
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Client | iVMS-4200,Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+ |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day,Night,Auto,Schedule |
| Image Enhancement | BLC,HLC,3D DNR |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Privacy Mask | 4 programmable polygon privacy masks |
Interface
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | Yes |
| Reset Key | Yes |
General
| Power | 12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W |
| Material | Metal & Plastic |
| Dimension | 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") |
| Package Dimension | 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6") |
| Weight | Approx. 270 g (0.6 lb.) |
| With Package Weight | Approx. 481 g (1.1 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Heartbeat,anti-banding,mirror,password protection,password reset via email |
